Kerf Chair +
Objective +
Build a plotting machine capable of drawing circuits
Using conductive tape we want to offer an accessible and rapid prototyping solution for electronic design.

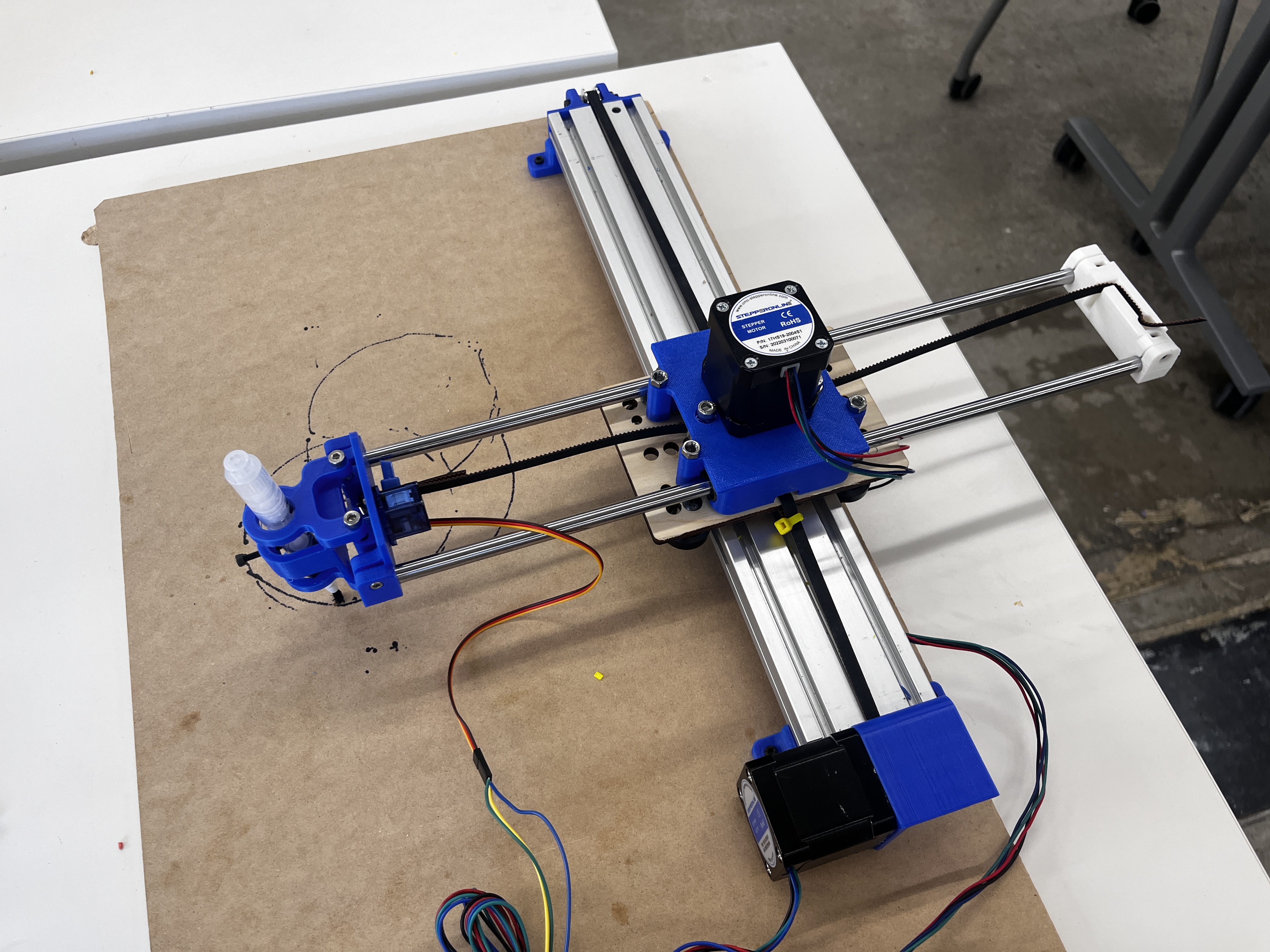

Completed Machine +
Our projected is based on an online drawing machine
We used schematics Andrew Sleigh's DIY pen plotter
https://andrewsleigh.github.io/plotter/
https://github.com/andrewsleigh/plotter/tree/master/3d-parts/v2
However we personalized some parts to fit the materials we have in class and the pen dispenser.
See the "Customization" tab below
Drawing A Circle +

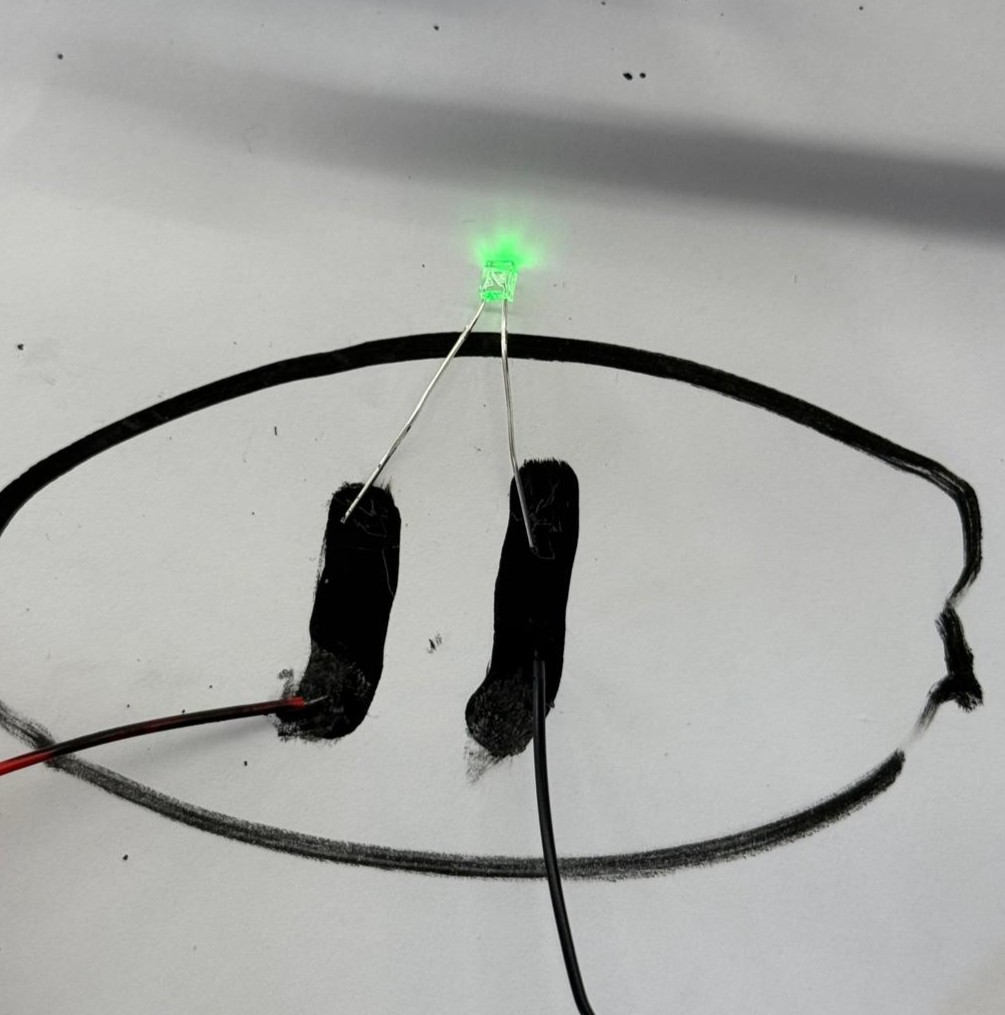

Drawing A Circuit+
Arduino Code +
Working Parts +

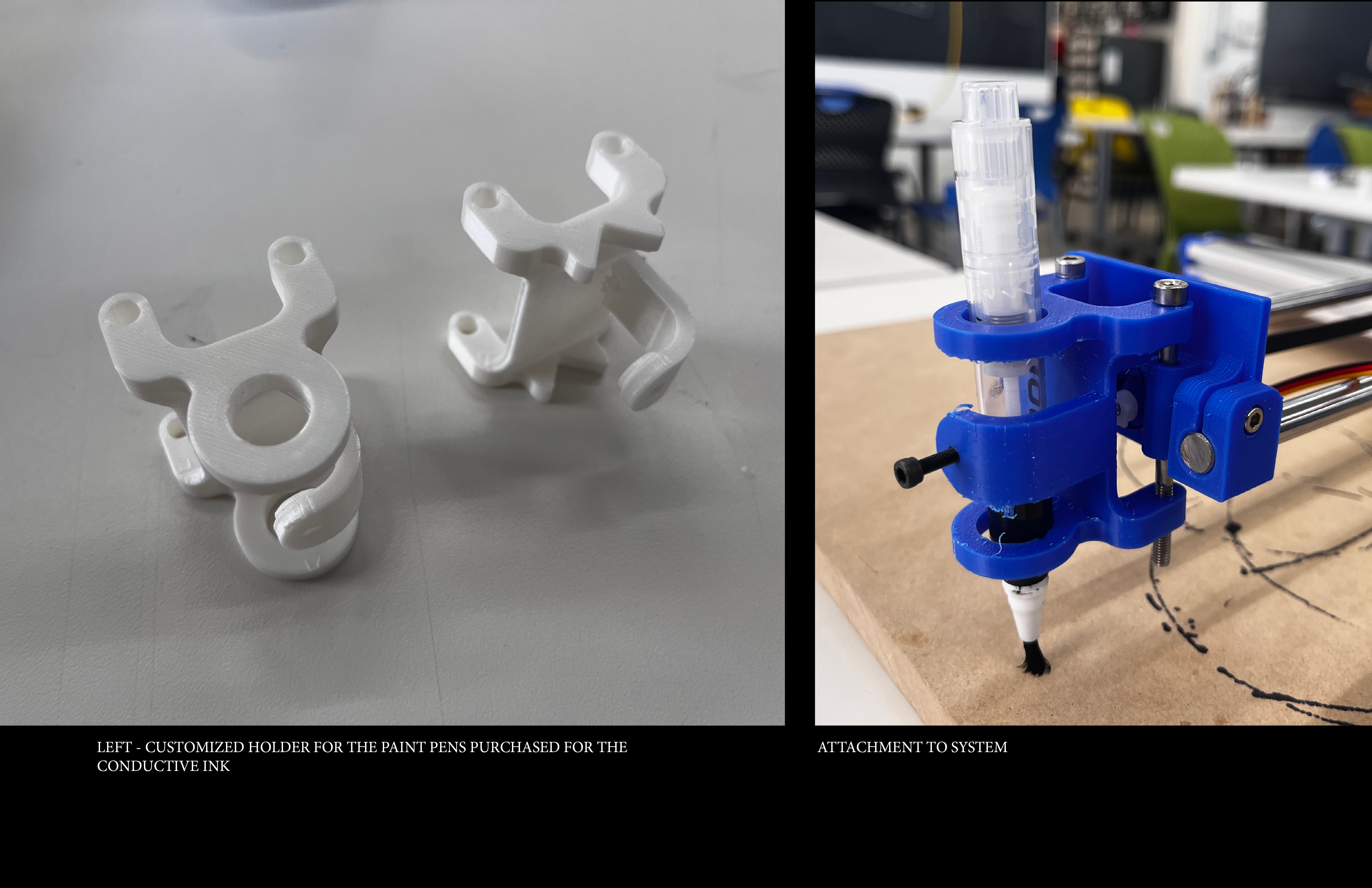

Customization +

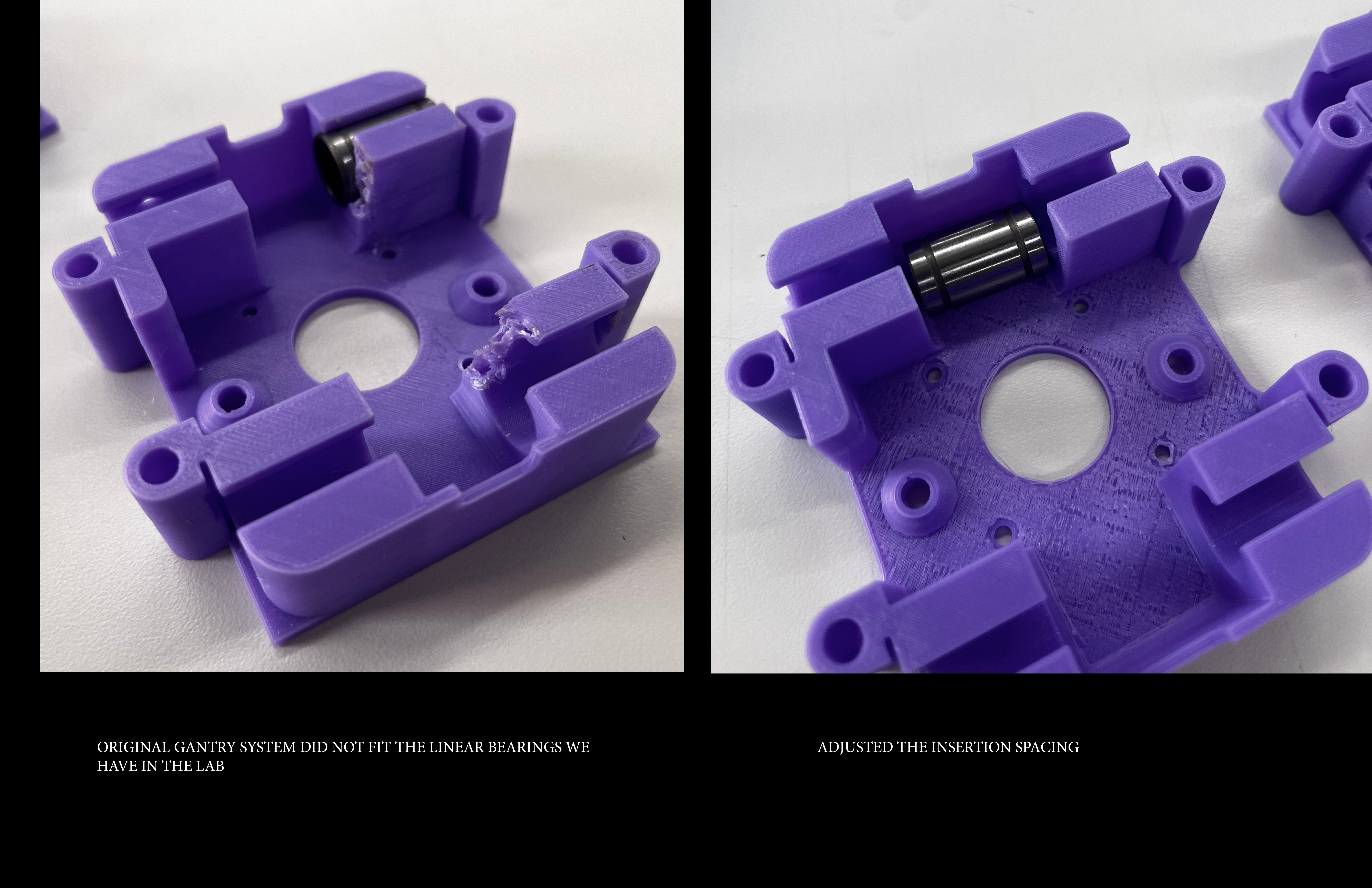

We made a few edits the drawing machine template
Issues +

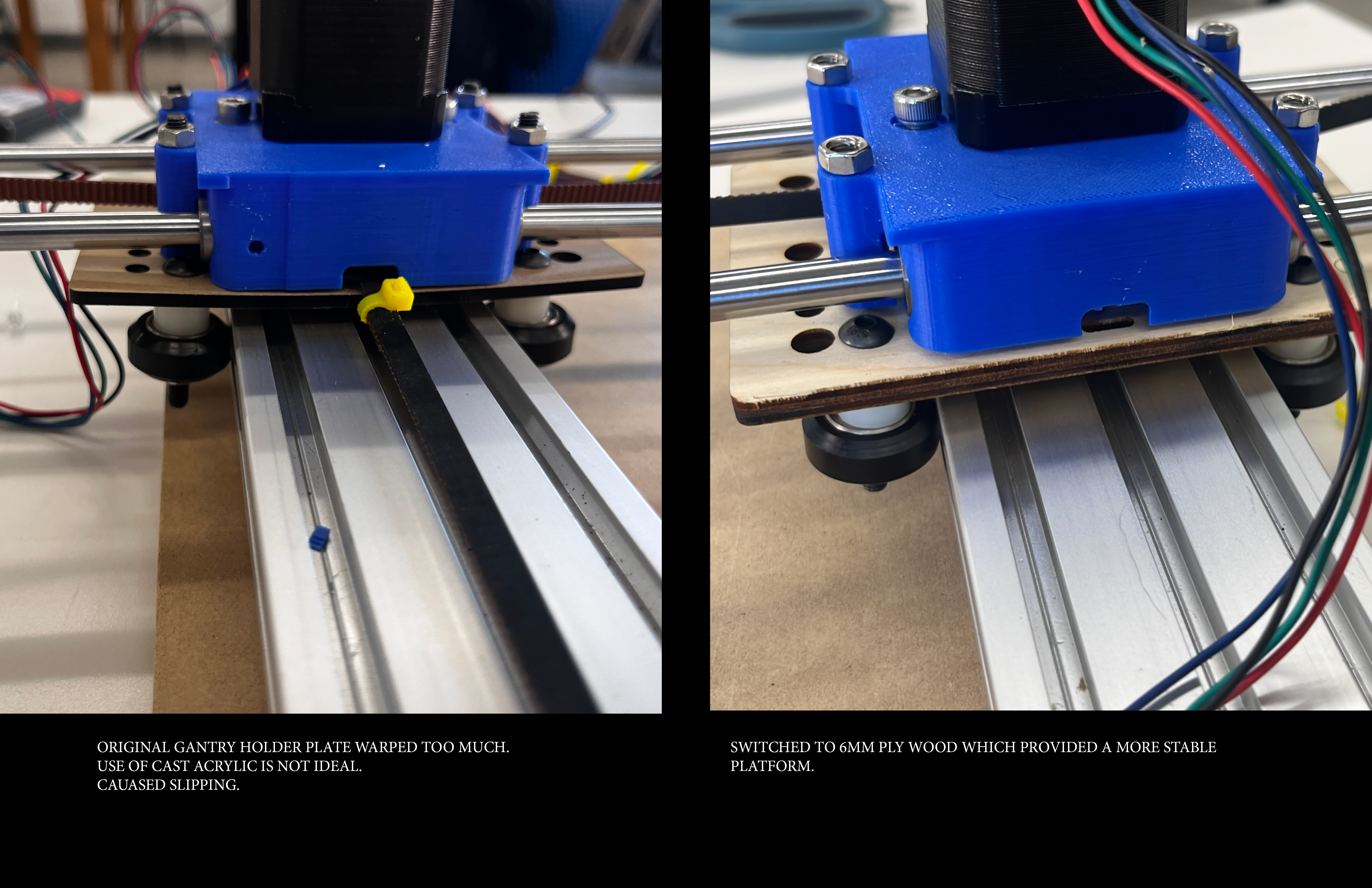

Wrapping with the gantry plate
Replaced Acrylic for Wood
Final Comments +
Drawing Maching Group Project
Callum Taylor; Jennifer Yu, Jessica Liu, Victor Ohene
We spent a bit more time after the class making adjustments as we just kept getting an oval
After changing to the wood panel the panel the friction along the Y Axis was more
In the loop code we had to double the circle path equation for Y to stretch out the oval into a circle
