Week 08 Assignment +

Completed Assignment +

Aim +

Process +

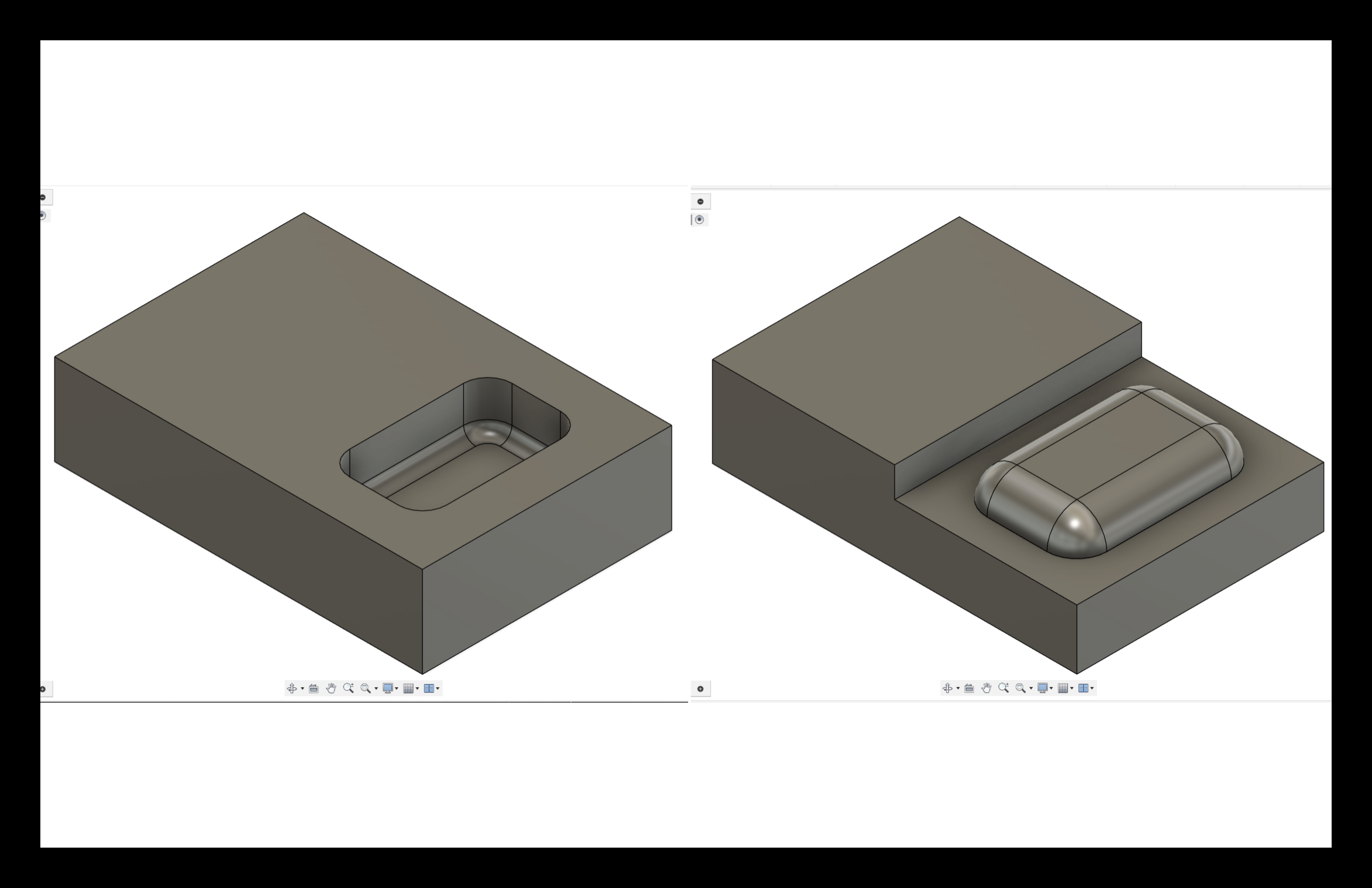

Part to whole +

Left - first cut

Right - second cut

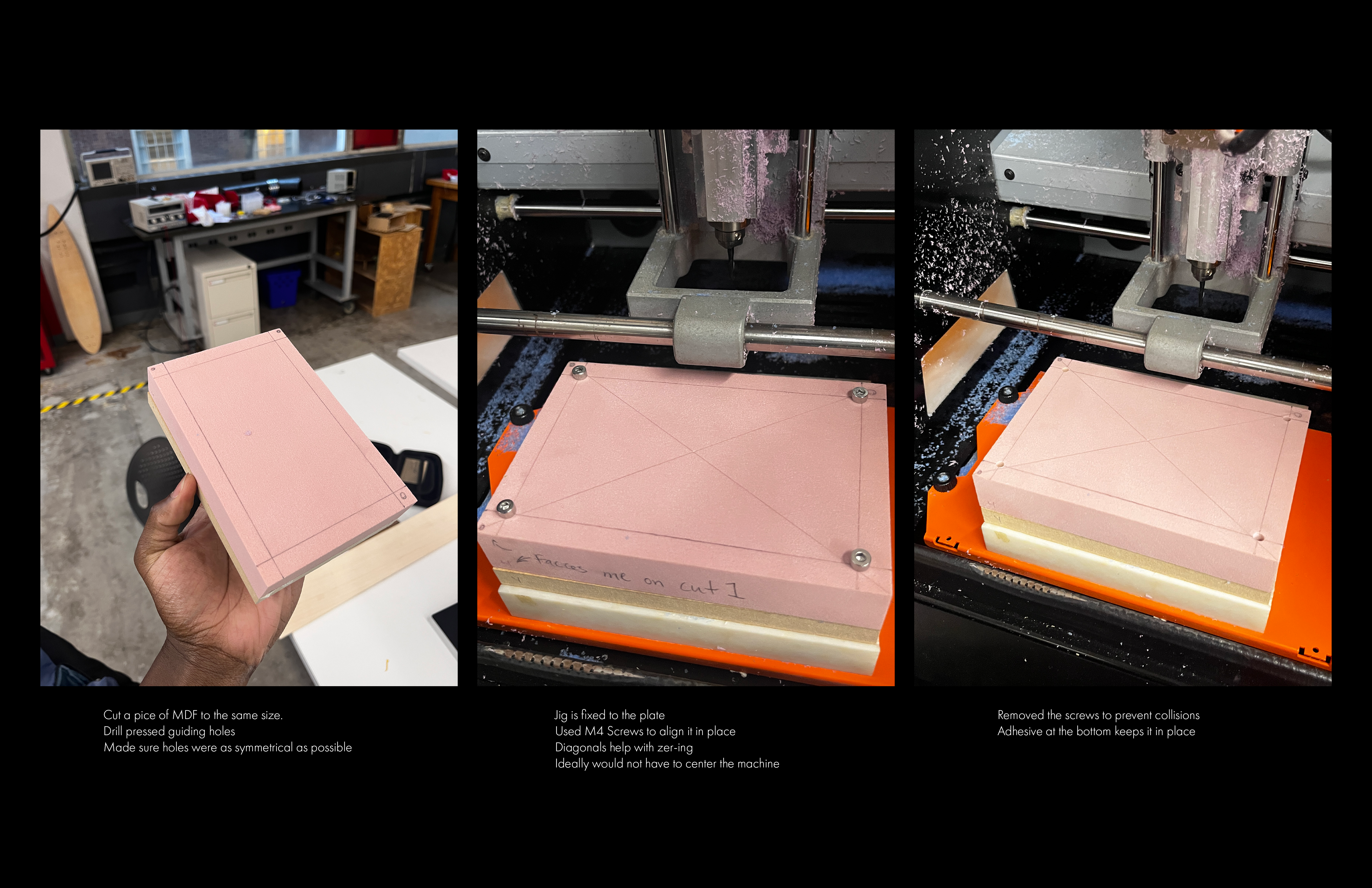

Jig +

Made a custom simple jig to aid with alignment

It stays on the bed. I tighen the screws to align the block

But remove the screws to not mess up the machine

Adhesive between jig and material keeps it in place

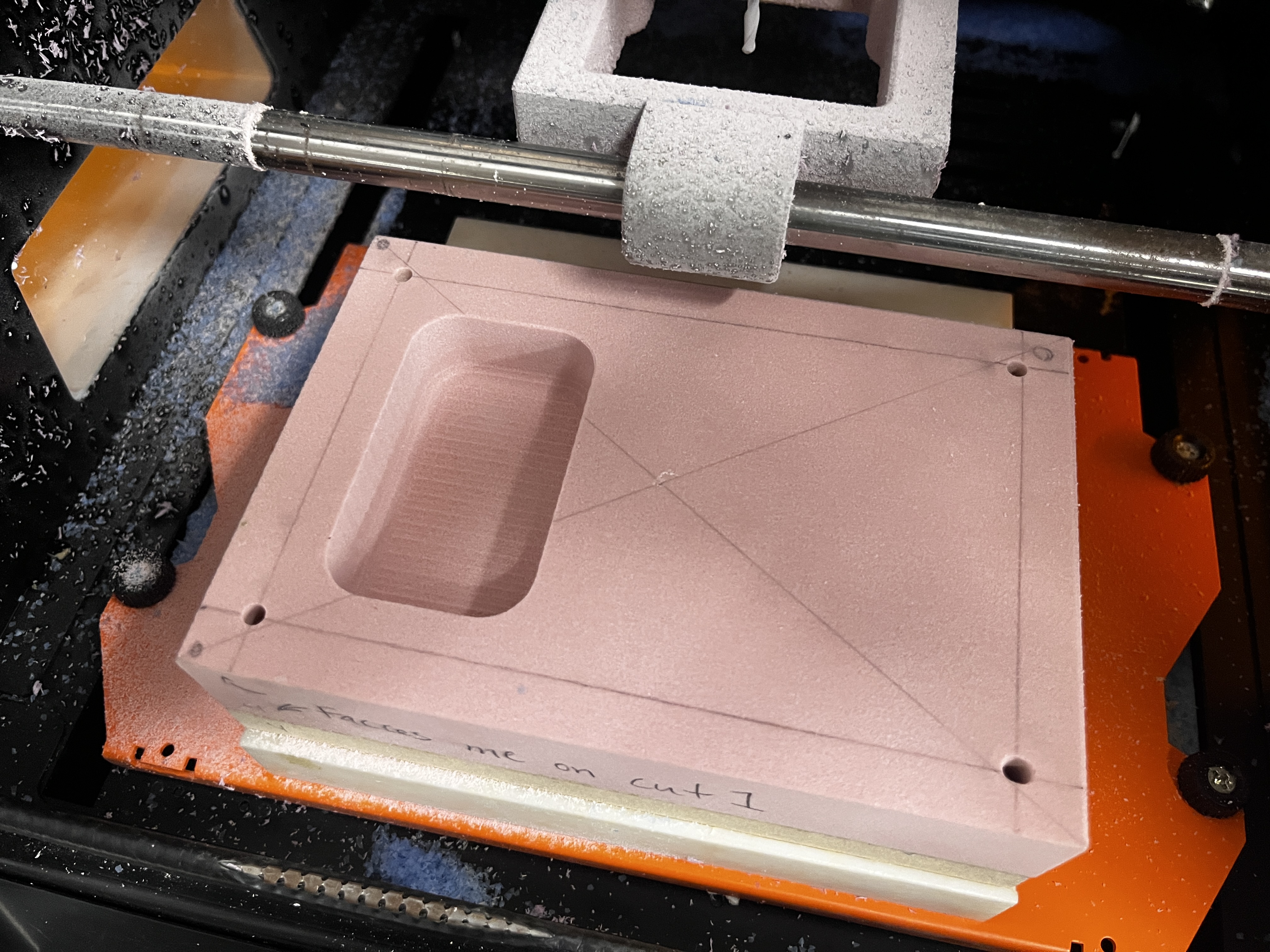

Cut 1 +

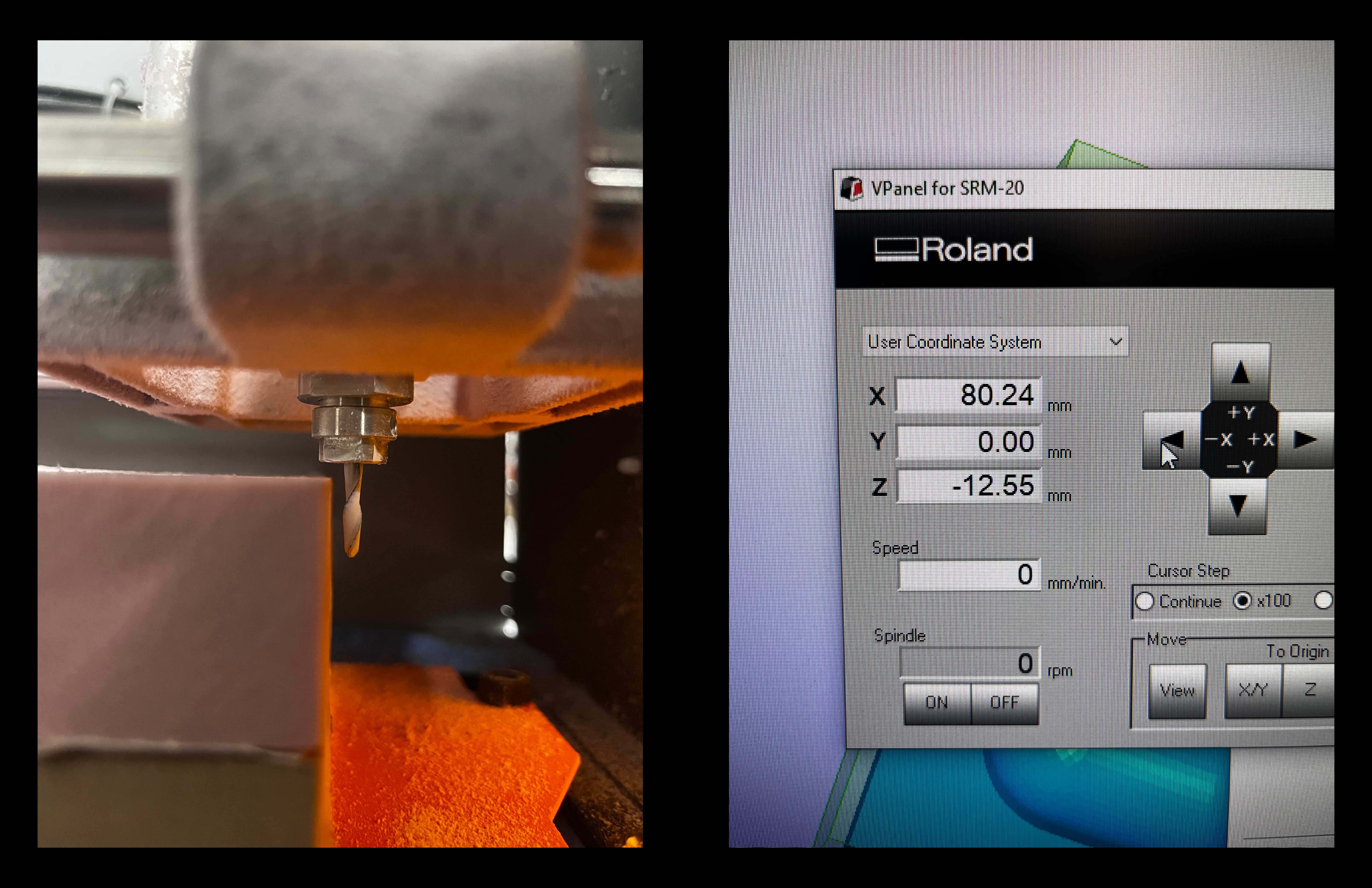

Cut 2 - Planning +

Flipped the stock material

Understood that the bit does not go all the way down

After Z axis was zero'd moved the stock to the side

Lowered the bit to a good clearing distance

Measured that -12.55 was the maximum I could go through safely

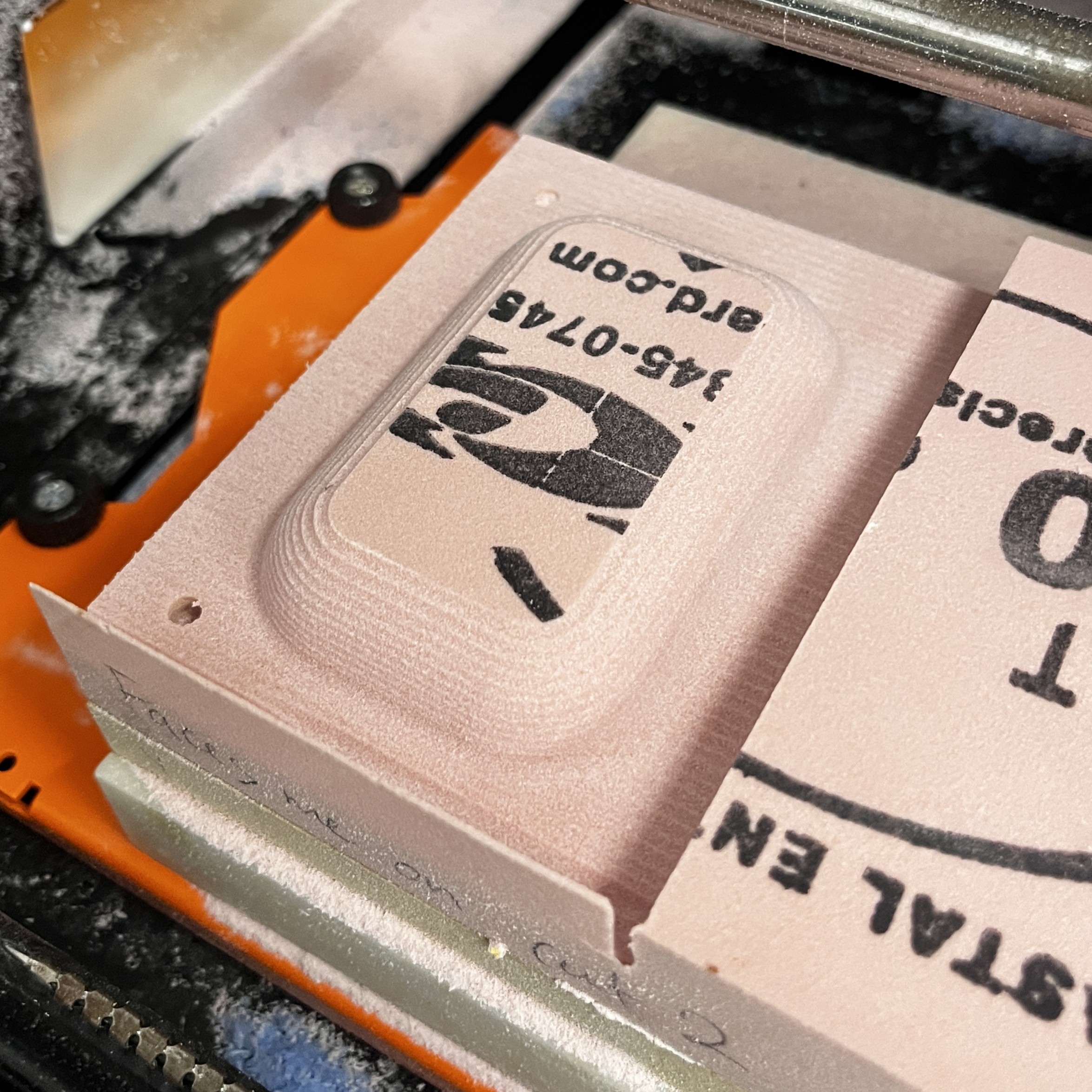

Cut 2 +

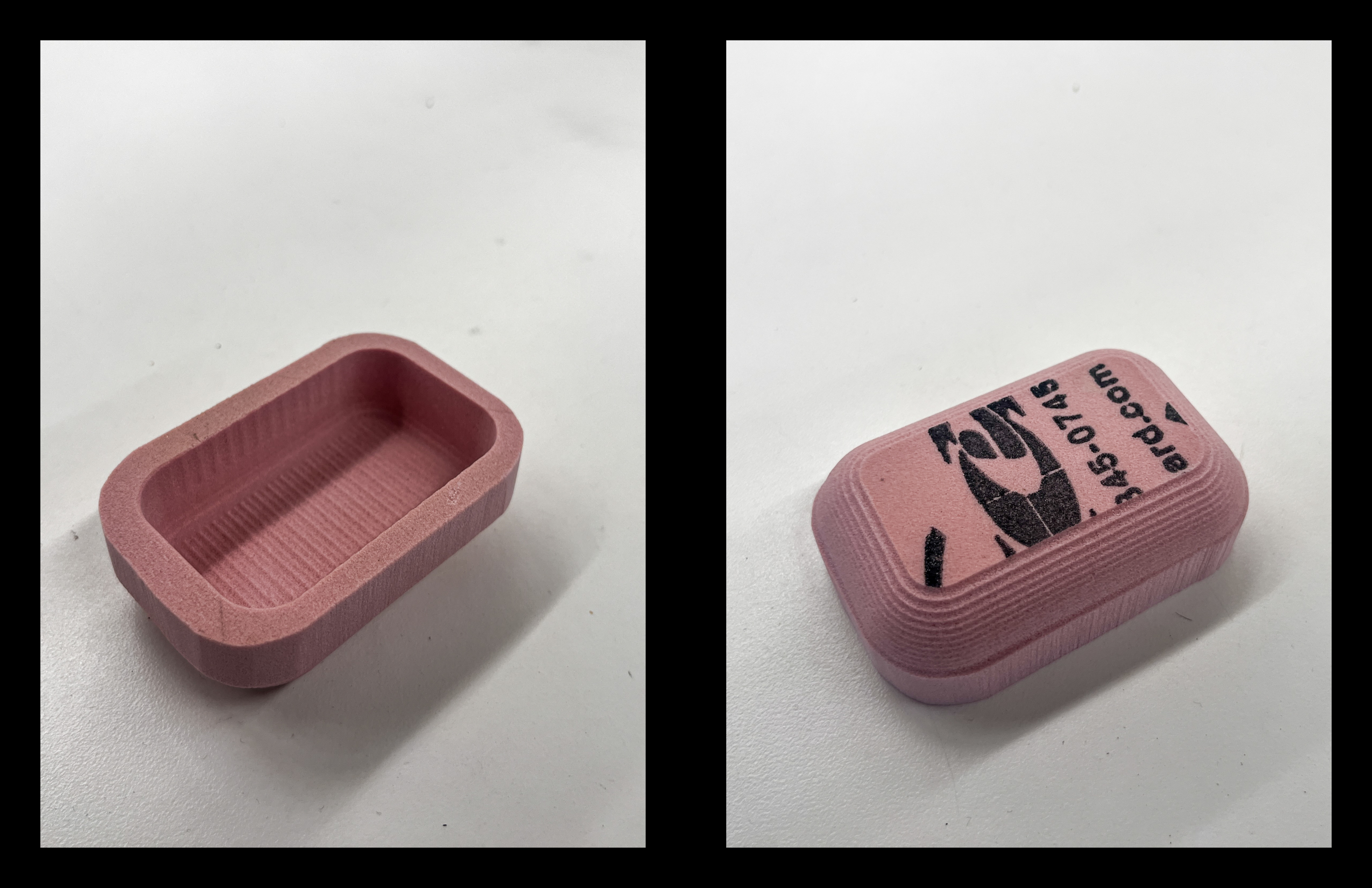

Post Processing +

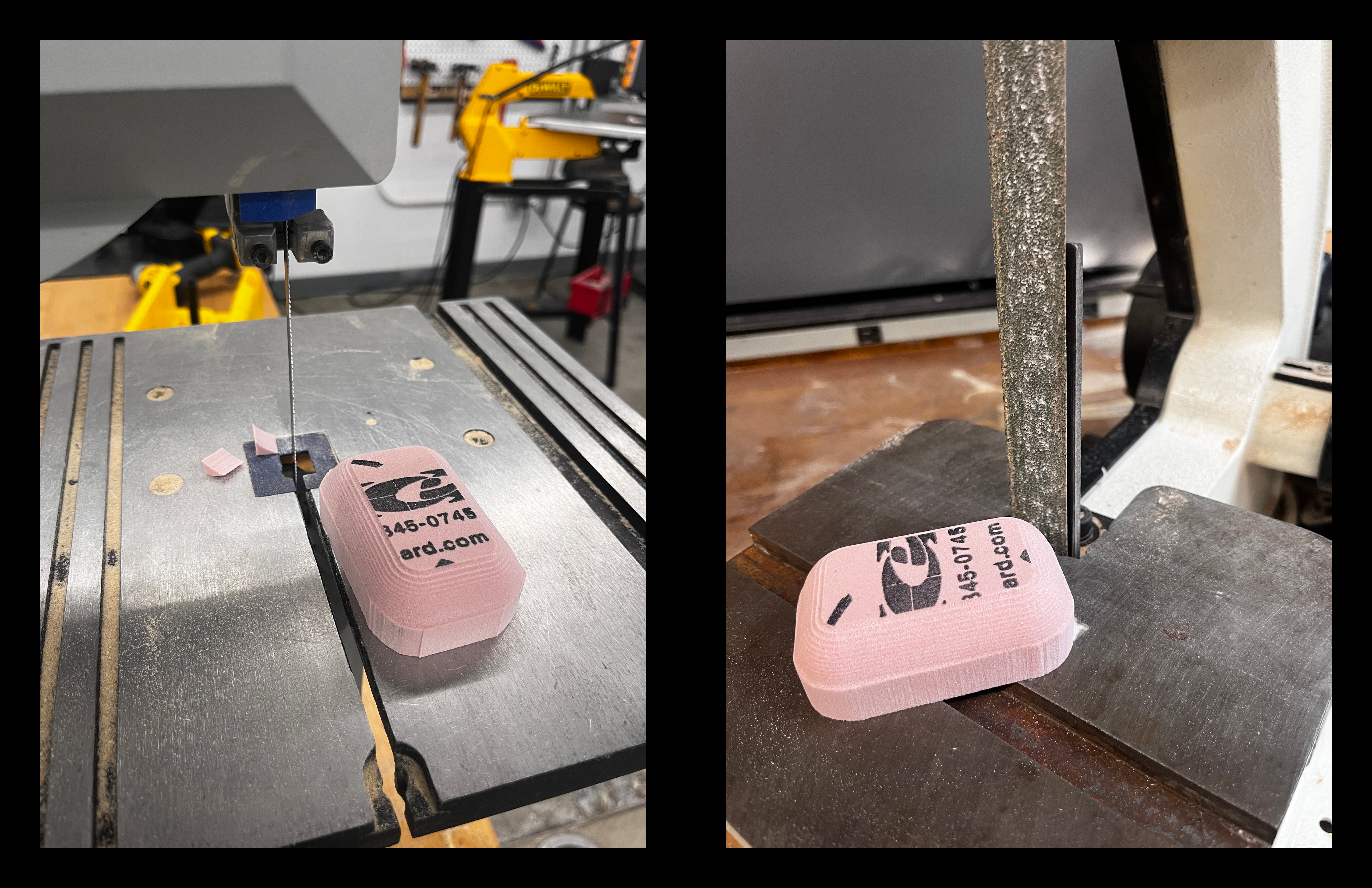

Cleaning up with the bandsaw and sander needed

End +

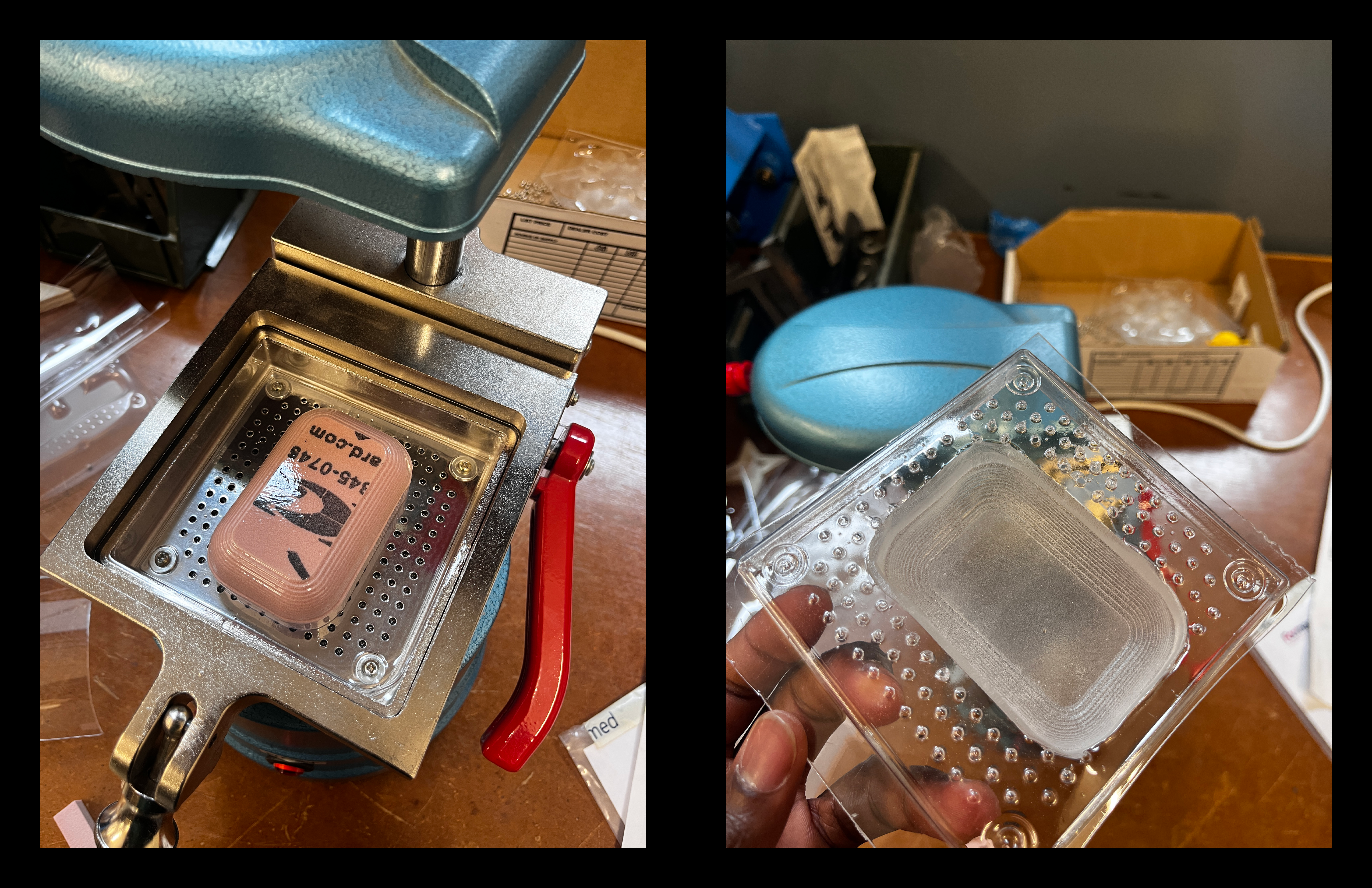

Vaccum forming +

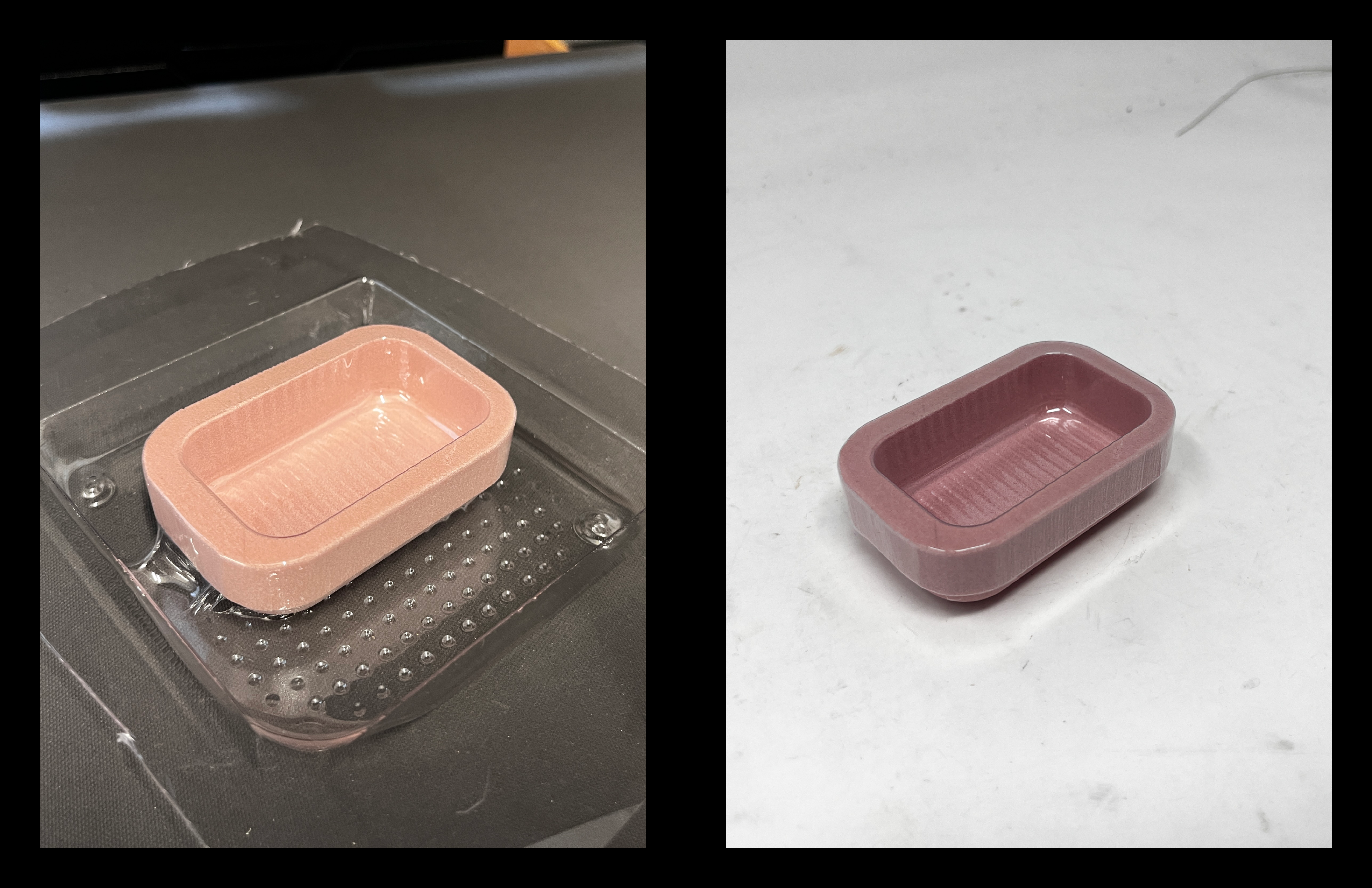

Final Product +

Trimmed the top vaccum form to create a waterproof lip

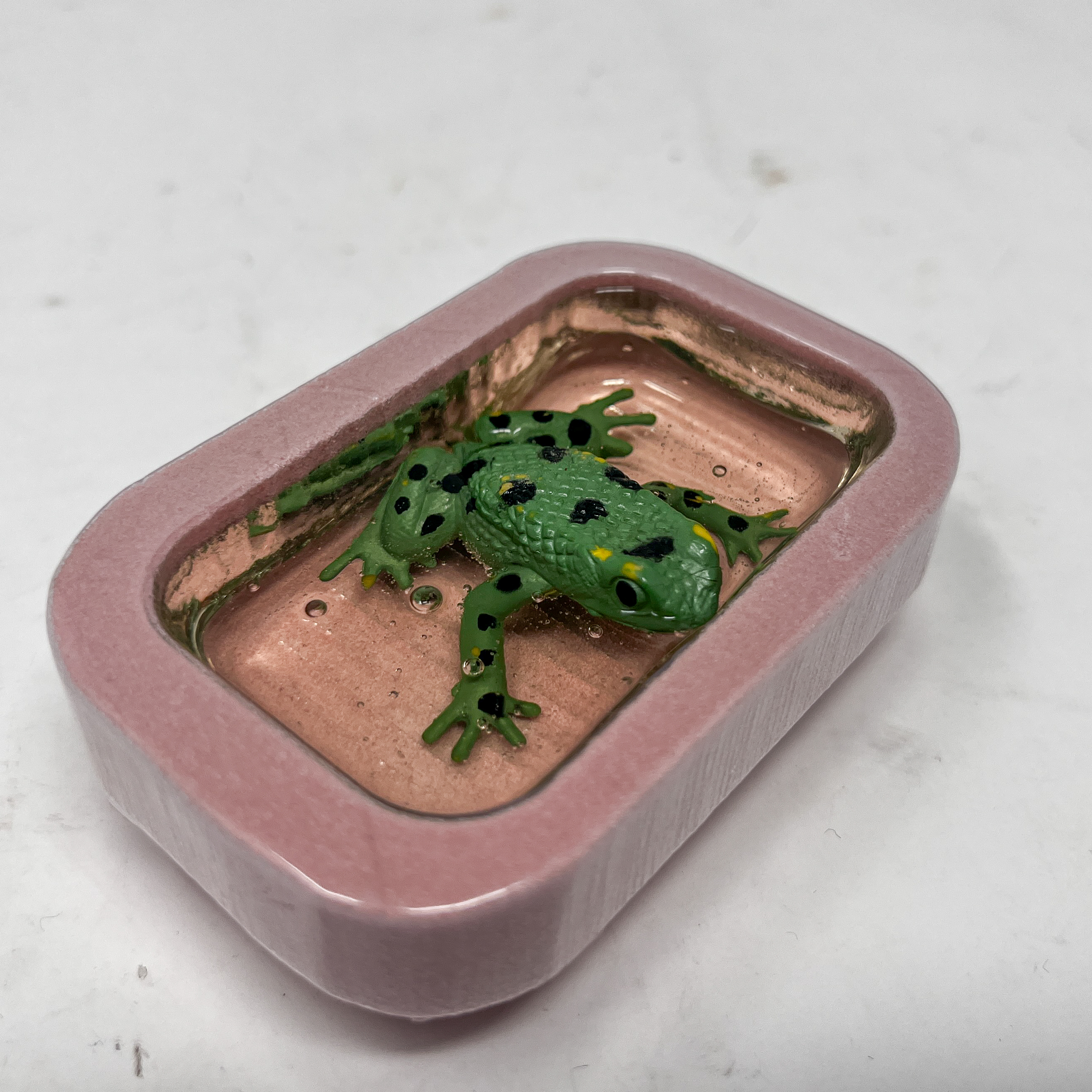

It can now be a baththub for this frog
