Week 05 Assignment +
Aim +
include connection to final project if any
Task 1 +
Steps +

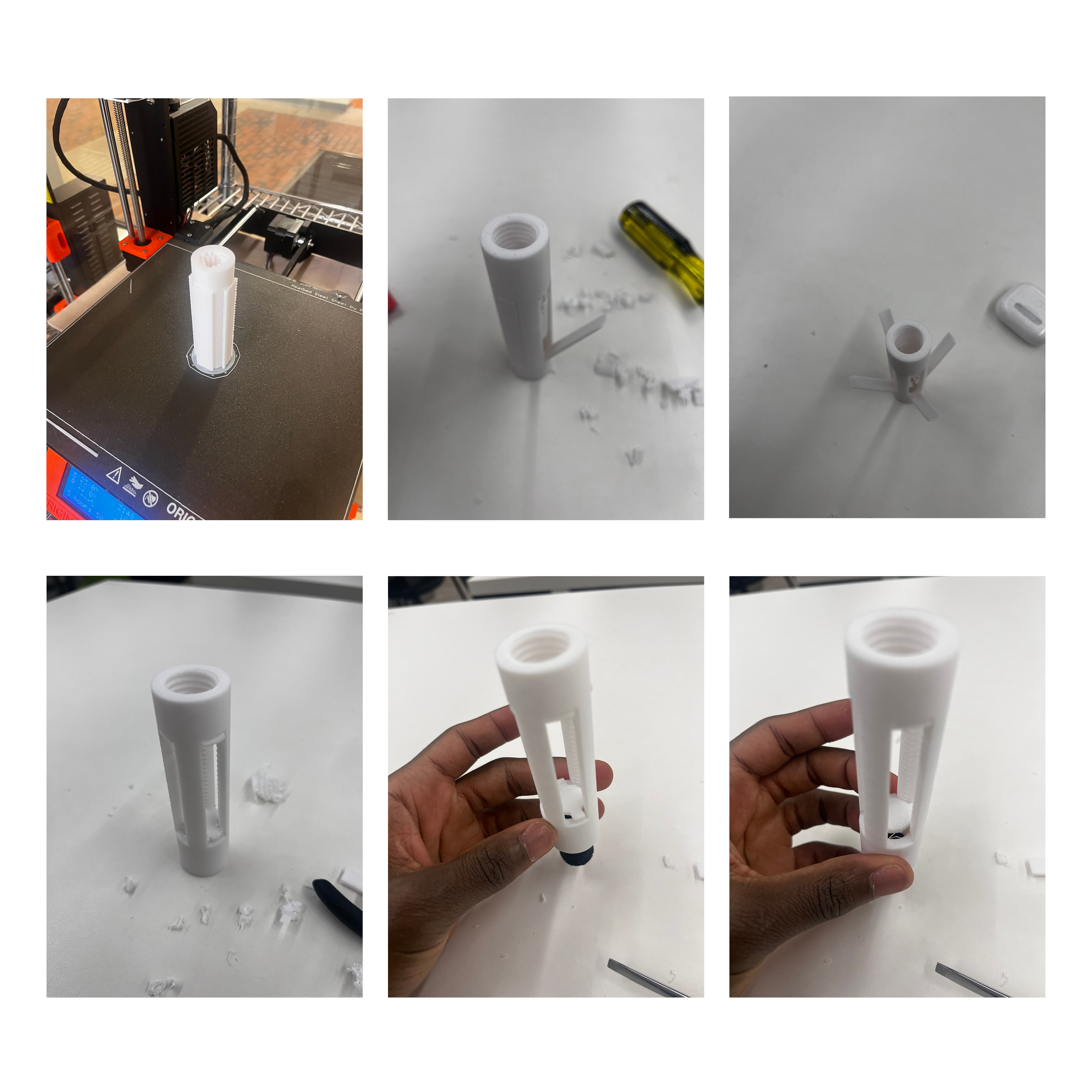

First test had a few issues _
Internal screw was too tight _
Clearance at the top of the turning lever was too small _
This made them break off while removing supports _
Altogether it passed the proof of concept _
Originally wanted to print the screw imbedded but that was shown to not work

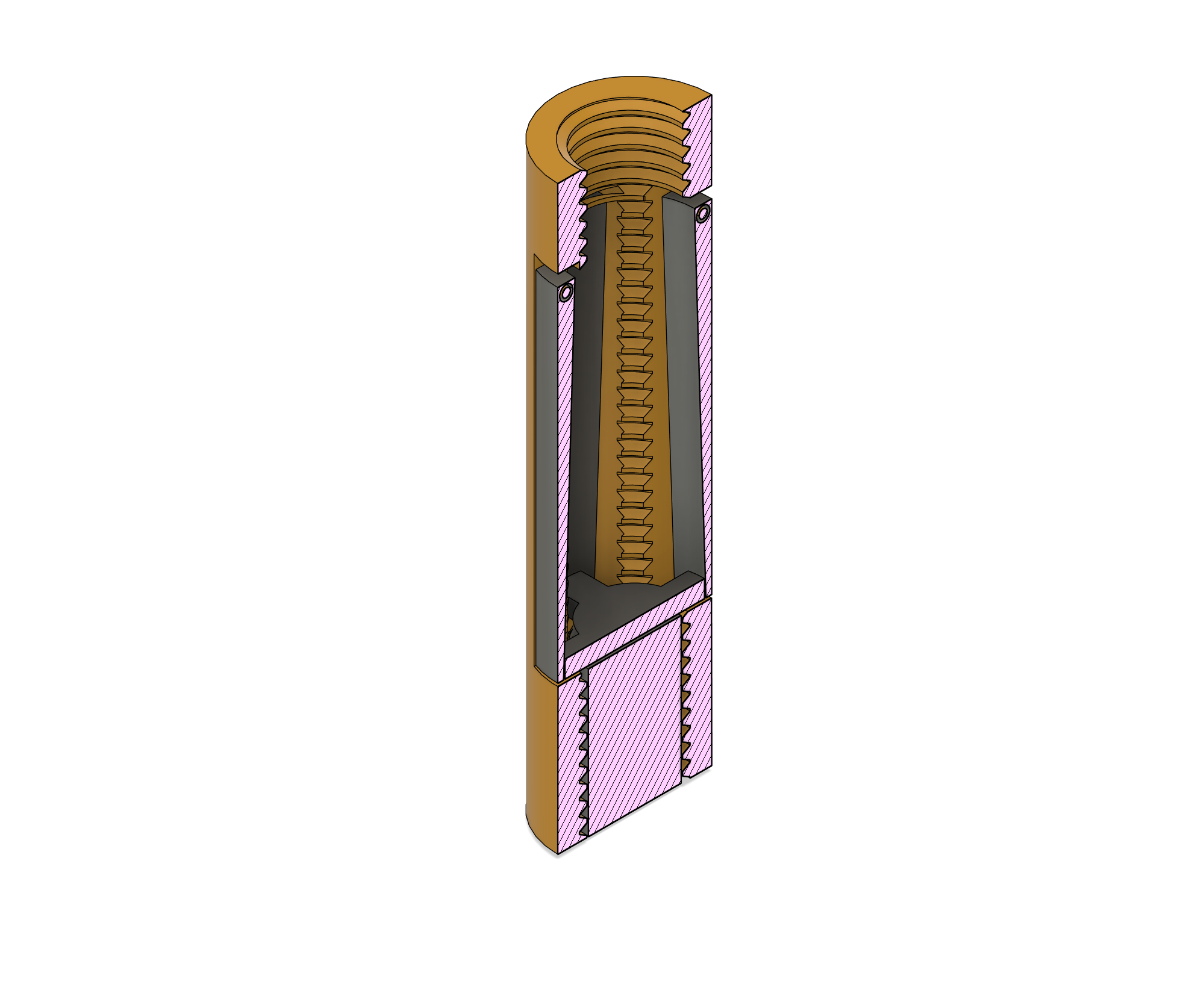

Prototype 2 +
Made adjustments learning from first print
Screw still failed decided to change system

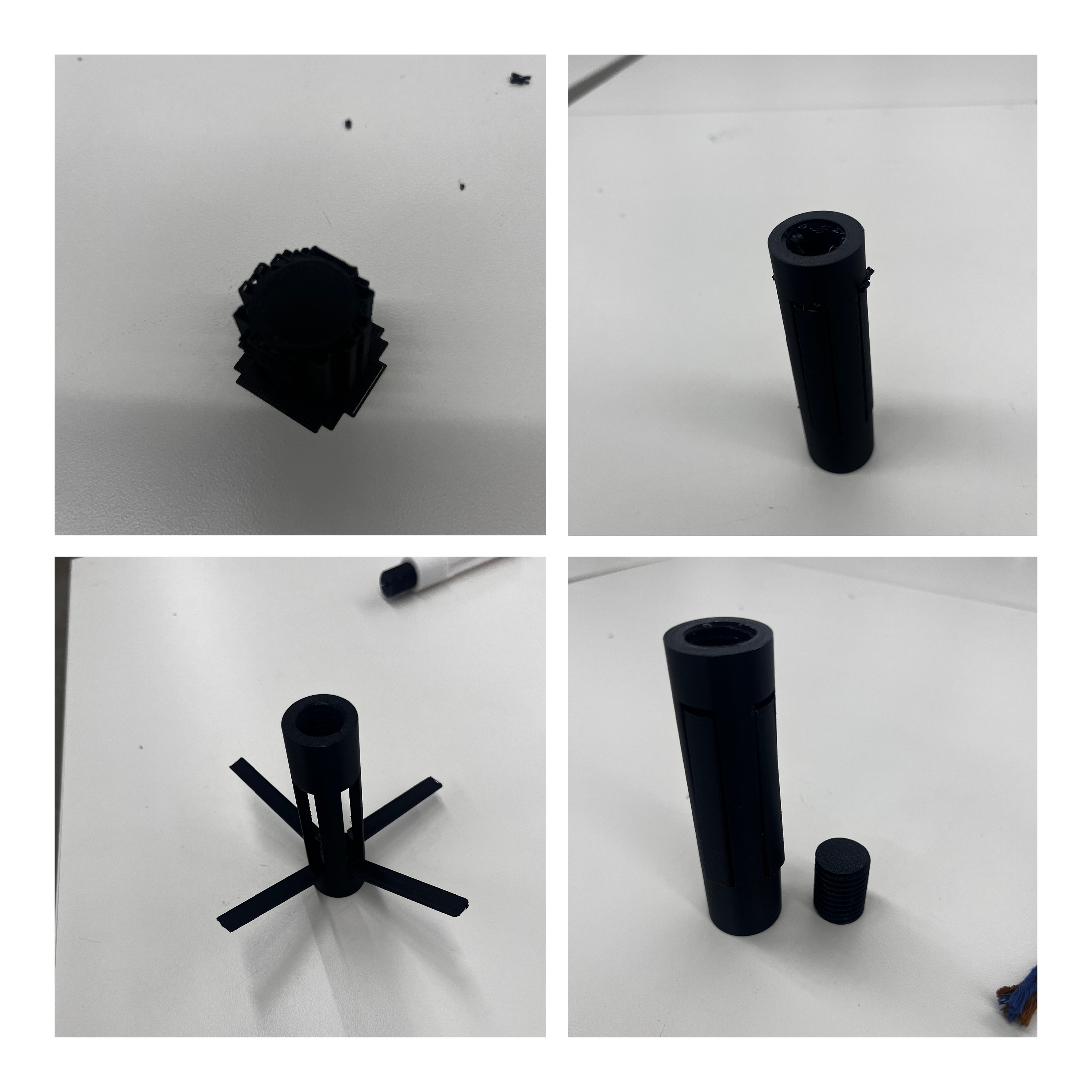

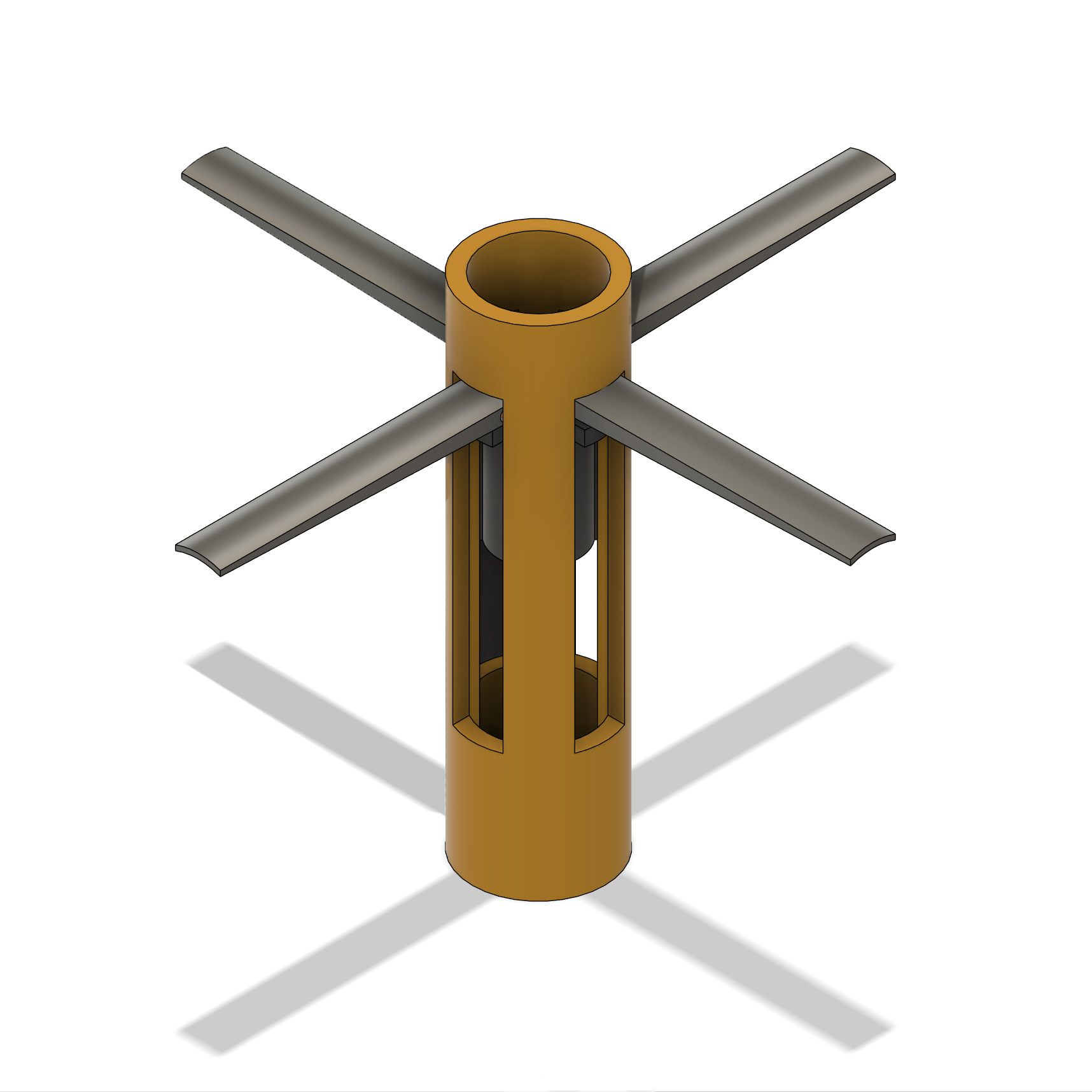

Final Piece +

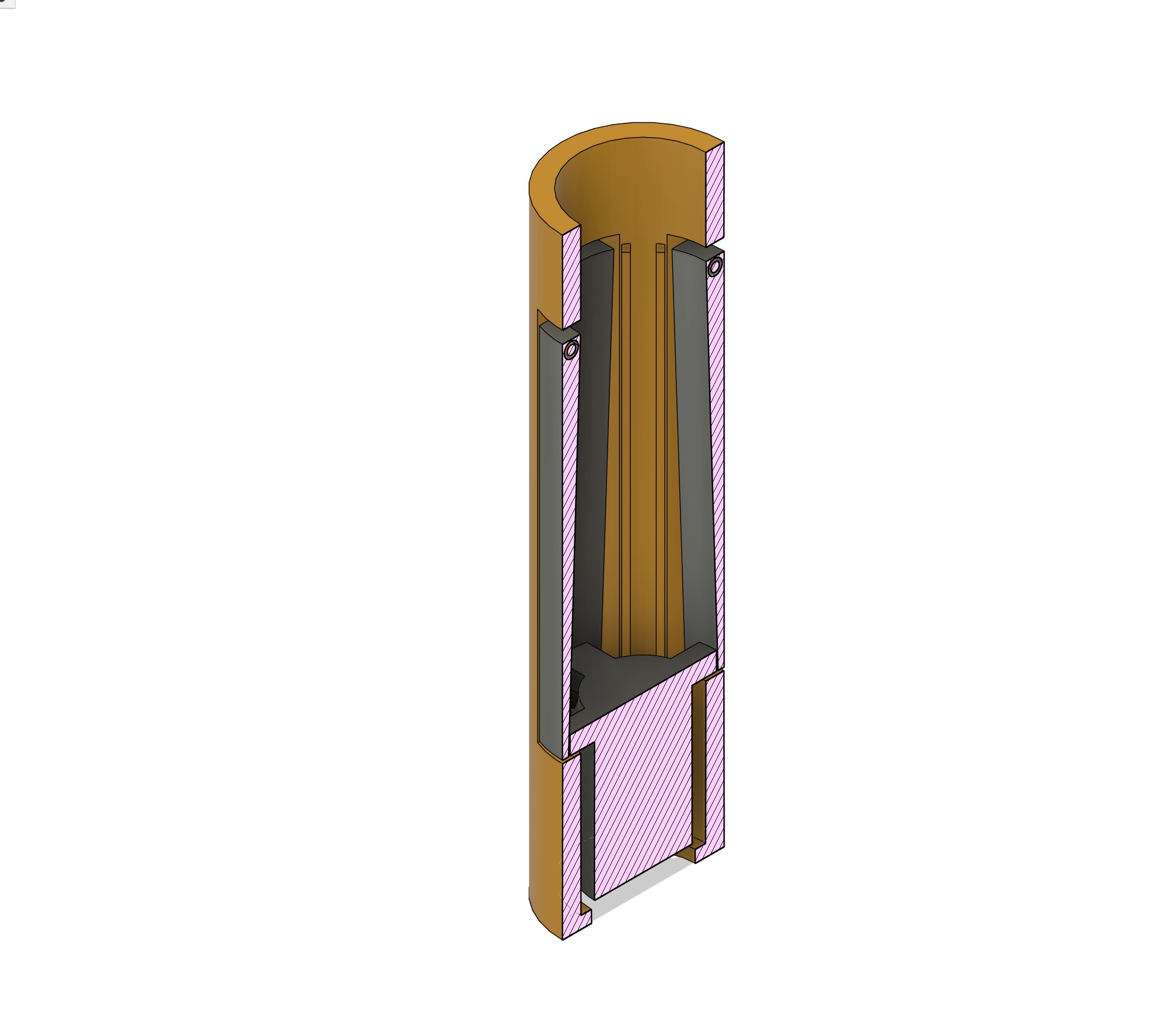

Switched from the screw to a push-slot system
Allows for printing in one piece
Task 1: Model and 3D print a component that cannot be easily made using subtractive methods

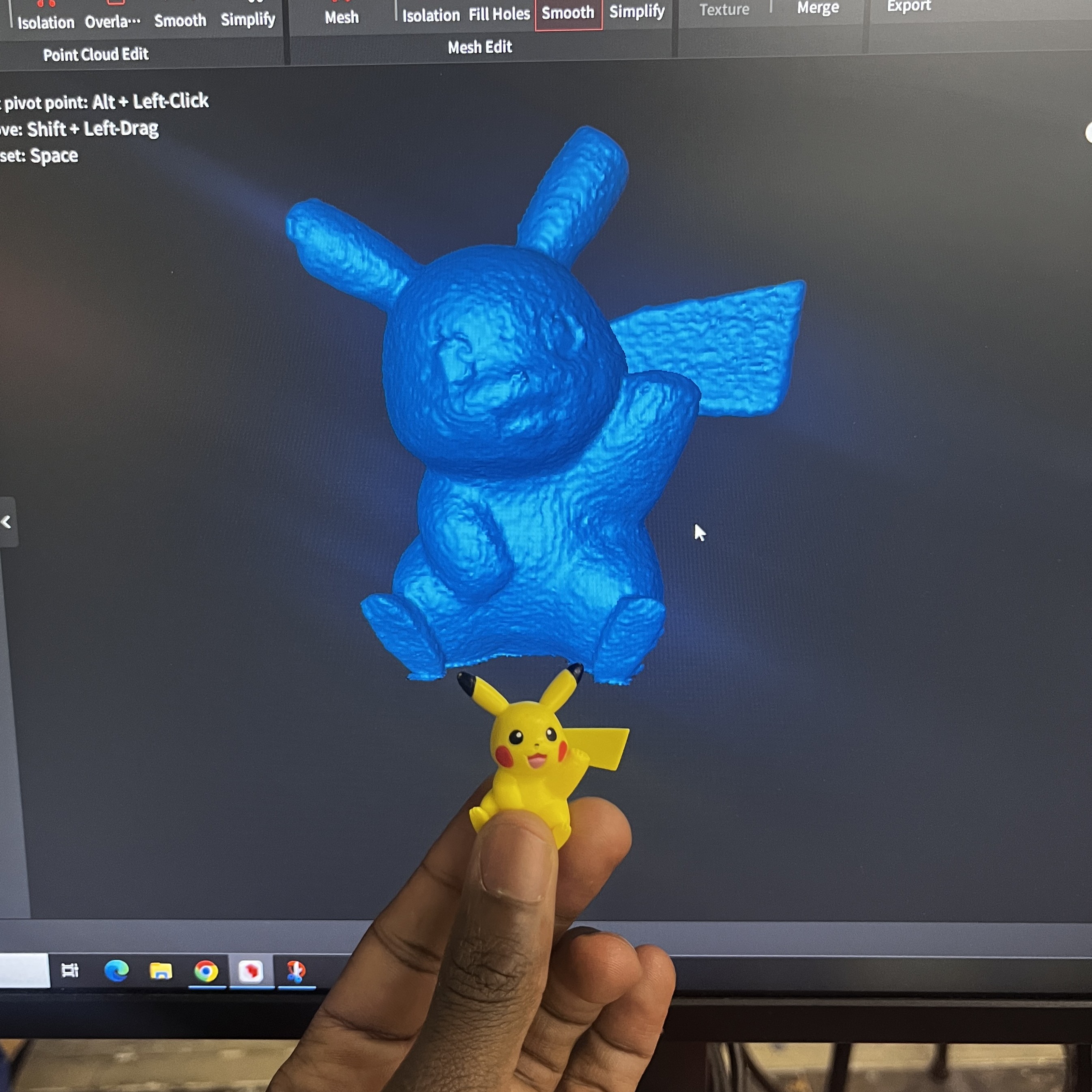

Scan something using photogrammetry
Upload final model and updates for the final project
3D print a nested object with built in hinges as a single piece
Scan something natural or something I can then 3D print a replica
A pocket gizmo
A simple shaft with a screw bit that pushes a tab to open up the levers
